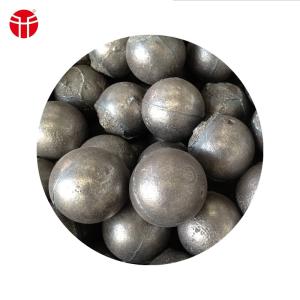

Cast Iron Grinding Balls 80mm Zinc mines and copper mines cast iron steel grinding ball and forged iron balls
Company Profile
Jinan Huafu Forging Co., Ltd, mainly produces grinding media in ball mill for many years. With the strength of forged steel ball, cast steel ball, grinding rod, steel cylpeb and steel ball production equipment. All of our products are strictly according to the ISO9001-2008 Standard. We also have other company named Shandong Huafu Steel Ball Co., Ltd, so we have ability to produce high quality and large quantity products.
The products we can produced as follow:
Hot rolling steel ball:20-60mm
Forged steel ball: Dia. 60mm-150mm
Casting steel ball: Dia. 17mm-130mm
Grinding rod: Dia. 30mm-130mm. Length: 3m-9m
Casting steel cylpeb: 8mm*10mm-70mm*75mm
Hot Rolling Steel Cylpeb: 20*30mm-50*60mm
Steel ball production line: Dia.20-150mm
Ball Mill Liners: according to ball mill
The Specification of Casting Steel Ball
Low Chrome Casting Steel Ball
Chrome Concentration is 1-3%, hardness ≥ HRC 45, impact value ≥1J/CM^2, this steel ball is called low chrome grinding balls, which is made by smelting in intermediate frequency electric furnace, metal mould or sand casting process. It applies to metallurgic mines and slag industries where no high grinding accuracy or wearability is required.
| Chemical Composition | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 2.1-3.6 | 1.5max | 0.3-1.5 | 1.0-3.0 | ≤0.8 | ≤1.0 | ≤0.10 | ≤0.10 |
| Size | 17mm-150mm(0.8inch-6inch) |
| Hardness | Serious | Hardness |
| Standard Hardness | >45HRC |
| Impact Value | ≥1.5J/CM^2 |
| Balls Number | ≥10000times |
| Microstructure | P+C(C-Pearlite M-Martensite ) |
Medium Chrome Casting Steel Ball
Middle chrome grinding balls chrome concentration is 4-6%, hardness ≥ HRC 48, impact value ≥2J/CM^2Middle chrome grinding ball have a better performance than complex alloy ball.
| Chemical Composition | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 2.1-3.3 | 1.5max | 0.3-1.5 | 4.0-6.0 | ≤0.8 | ≤0.10 | ≤0.10 | ≤0.10 |
| Size | 20-150mm(0.8inch-6inch) |
| Hardness | Serious | Hardness |
| Standard Hardness | >50HRC |
| Impact Value | ≥3J/CM^2 |
| Balls Number | ≥12000times |
| Microstructure | M+C(C-Carbide M-Martensite ) |
High Chrome Casting Steel Ball
High chrome casting grinding ball, chrome concentration is 10%-24%, hardness ≥HRC58, impact value ≥3.5J/CM^2. High chrome casting grinding ball is one of the wearable steel ball with better performance-price-ratio, and its extensive usage has won itself a high share in the market.
| Chemical Composition | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) |
| 2.0-3.3 | 1.2Max | 0.3-1.5 | 10.0-24.0 | ≤0.1.2 | ≤0.10 | ≤0.10 | ≤0.10 |
| Size | 20-150mm(0.8inch-6inch) |
| Hardness | Serious | Hardness |
| Standard Hardness | >58HRC |
| Impact Value | ≥5J/CM^2 |
| Balls Number | ≥15000times |
| Microstructure | M+C(C-Carbide M-Martensite ) |
